Qualification of New MPP Bonding Tool for 12mils and 5 mils Al Bonding

Share This Post

Qualification of New MPP Bonding Tool for 12mils and 5 mils Al Bonding

MPP is proud to announce its recent success in qualifying heavy wire wedges (HWW) for 5 and 12 mil wires with a major Philippines sub-contractor specializing in production of power devices.

MPP’s main objective was to support the customer’s cost reduction and assurance of supply programs. MPP managed to engineer and deliver a set of HWW tools that supported these objectives by enabling the customer to qualify these tools as “drop in” replacements , fully transparent to the POR (Process of Record) without any need for parameter changes.

MPP offers a wide variety of heavy wire wedge solutions for all bonder models including:

Extended life tools

“No clean” tools

Application Specific Customized Solutions

Drop-in replacements for existing processes

mpp wedge solutions for all

Evaluation Process / Methodology

Comparison of Control (competitor’s existing tool) vs New MPP Bonding Tool

Process responses



Reading

Criteria

No Non Stick / No Misplaced

Visual

700g(12mils) / 100g(mls)

Wedge Shear Test

250g(12mils / 60g(5mils) min

Wire Pull Test

No Crater

Etch Test

IGBT~FDO 1.2~1.6 / FDO~Leads 1.9~2.6 mm

Loop Height 12 mils

1.9~2.8 mm

Loop Height 5 mils

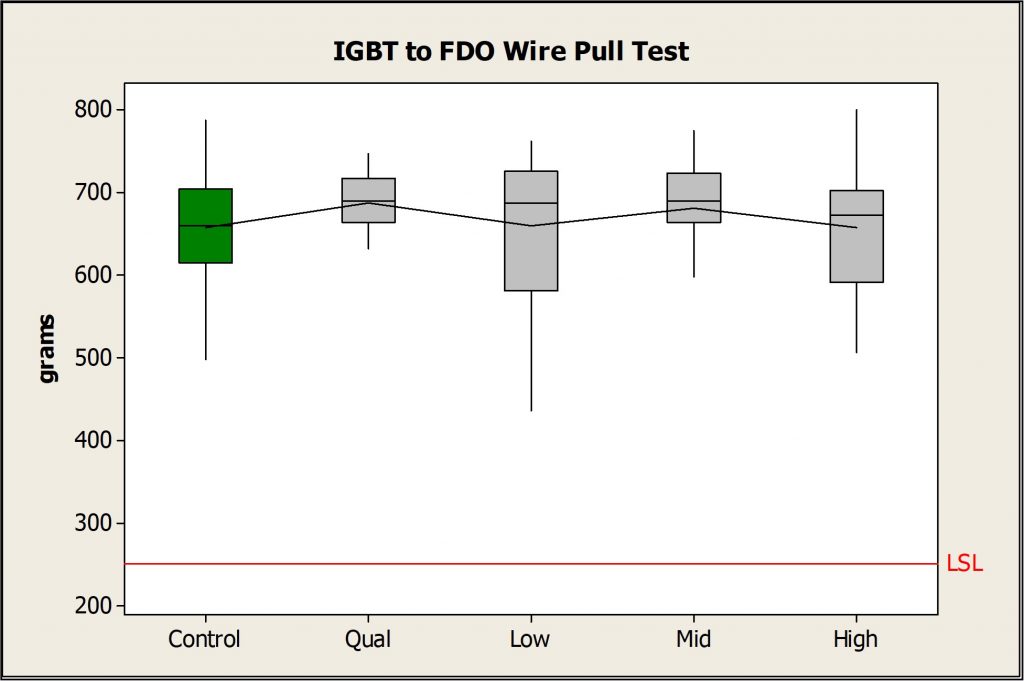

12Mils Bondability Test – Wire Pull Test

Remarks: no significant difference on Wire Pull Test on IGBT to FDO

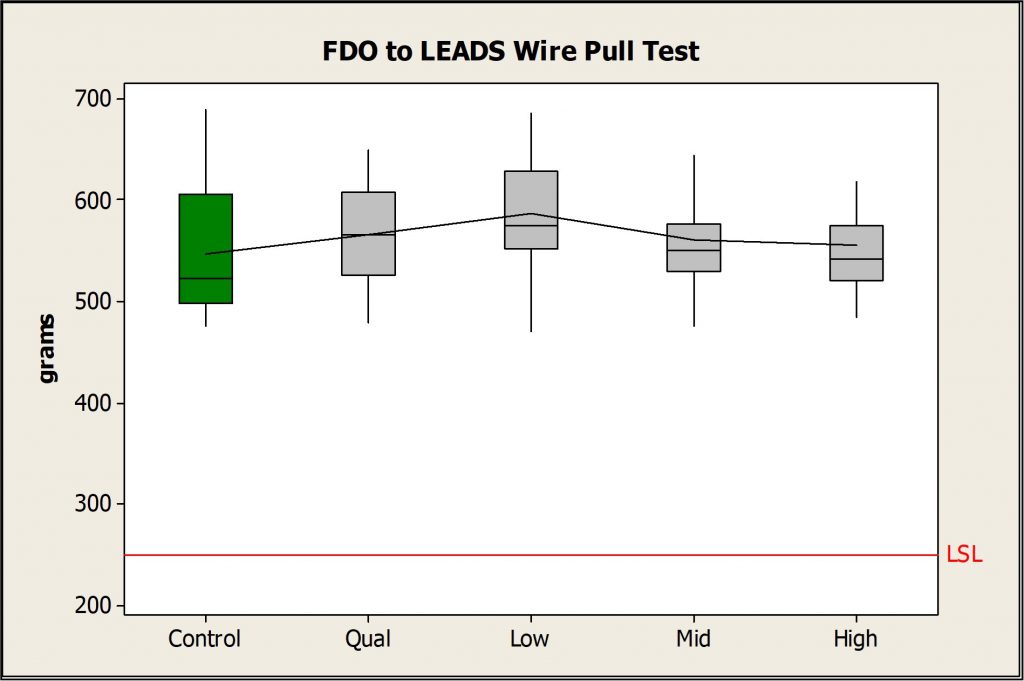

Remarks: no significant difference on Wire Pull Test on FDO to Leads.

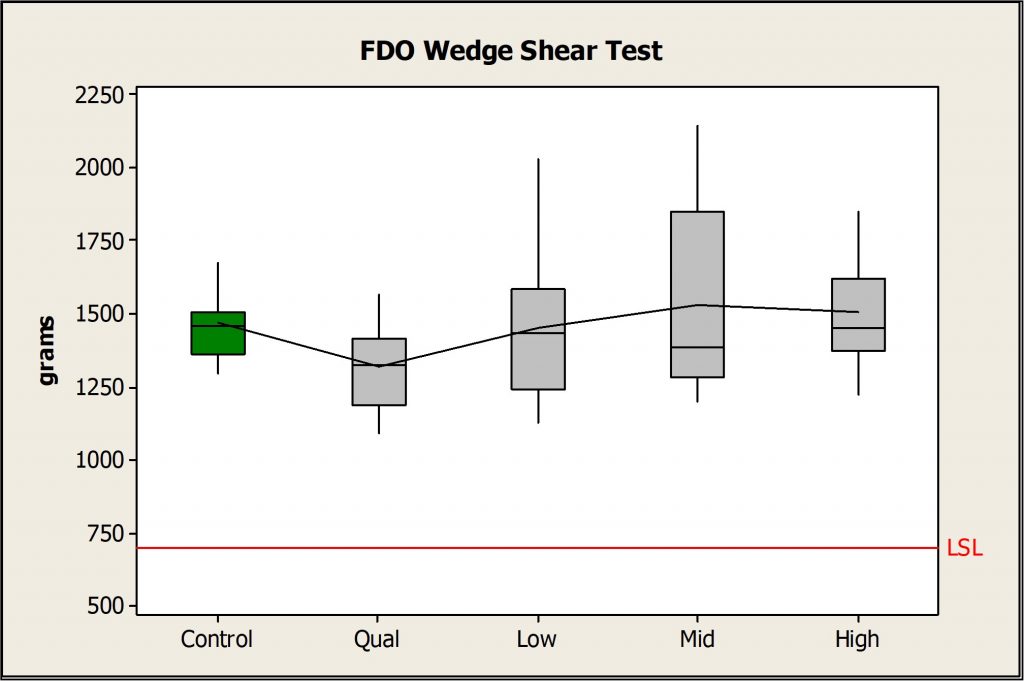

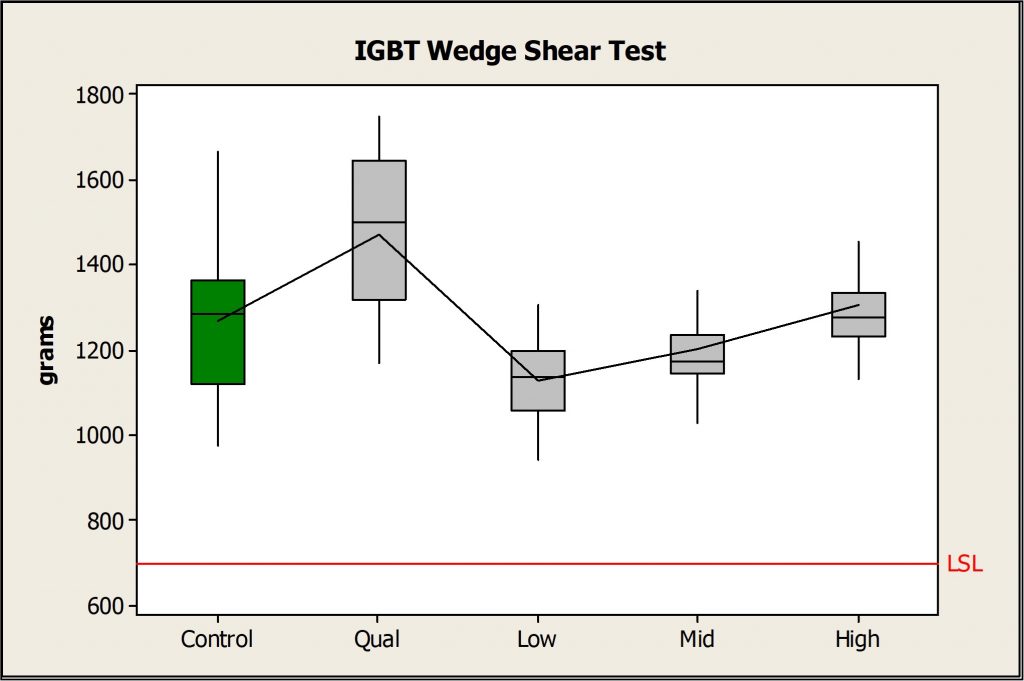

12Mils Bondability Test – Wedge Shear Test (WST)

Remarks: Parameter combination of Qual has the highest WST reading on IGBT.

Remarks: no significant difference on FDO Wedge Shear Test

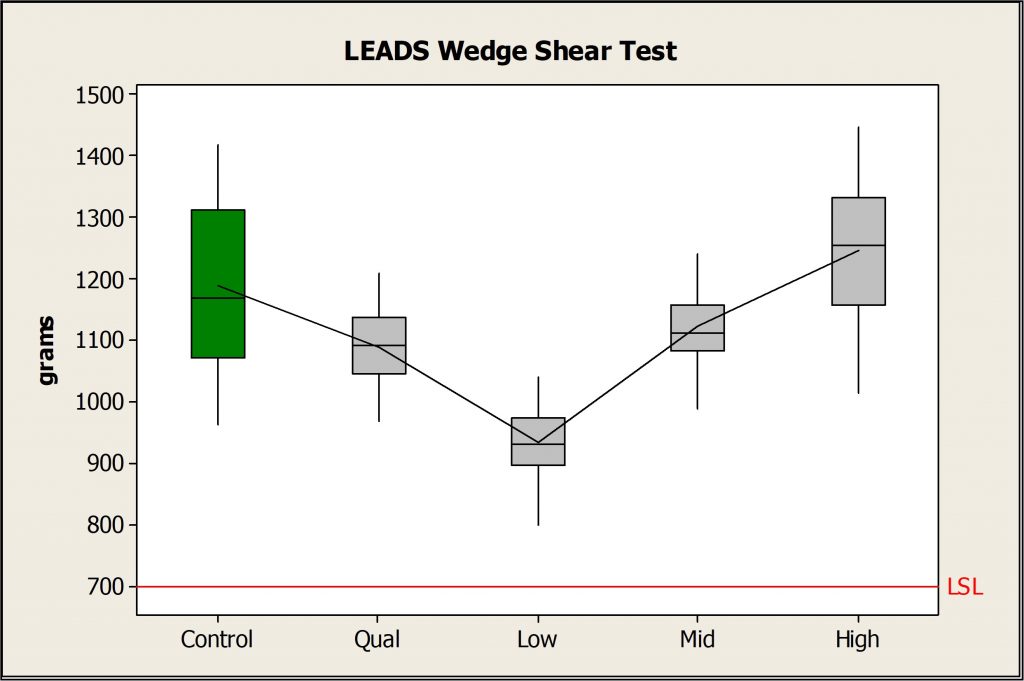

12Mils Bondability Test – Wedge Shear Test



Remarks:. All legs passed wirebond criteria.

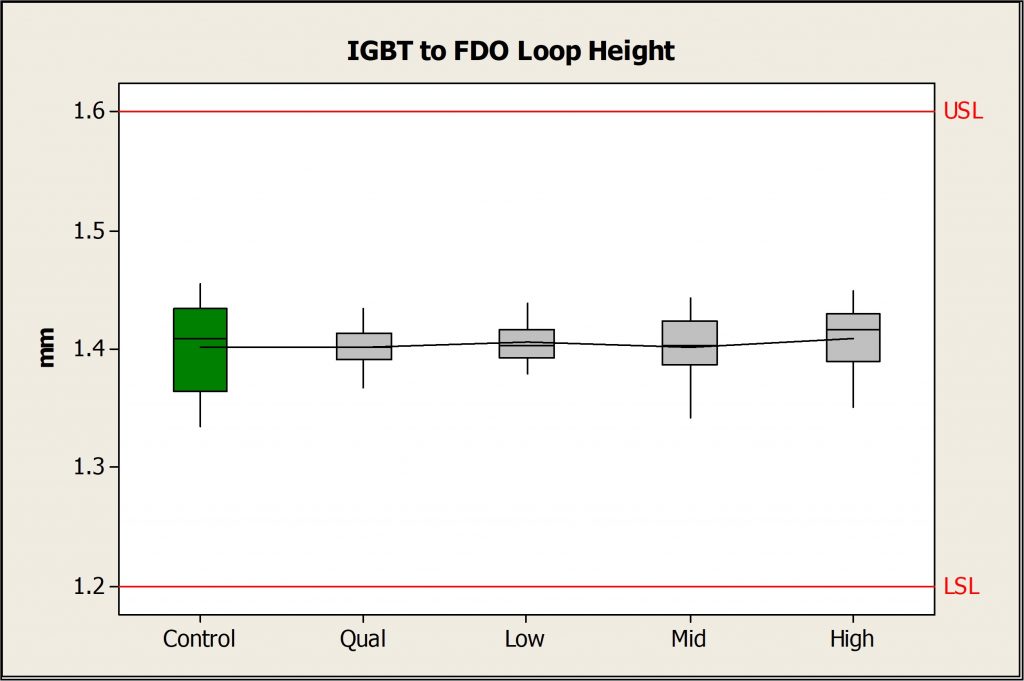

12Mils Bondability Test – Loop Height



Remarks: No Significant Difference on Loop Height at IGBT to FDO

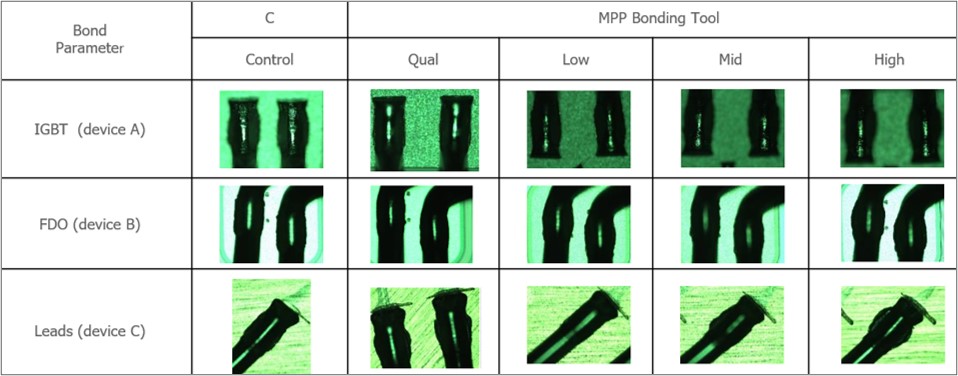

12Mils Bondability Test – Visual

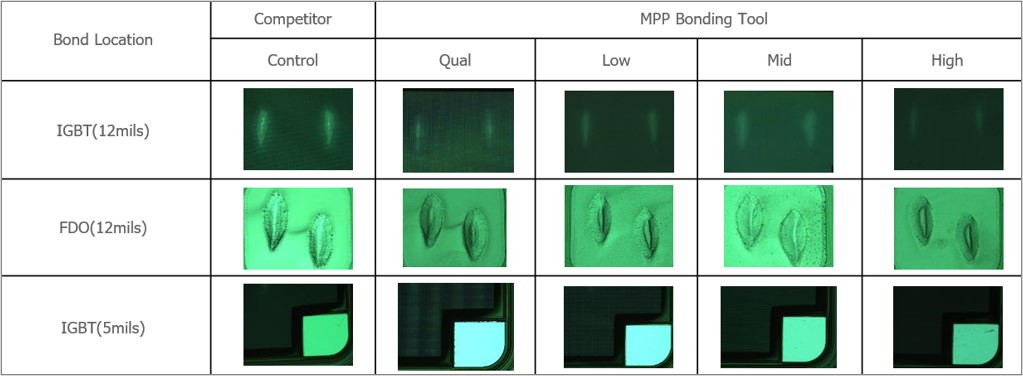

12Mils Bondability Test – Crater Test

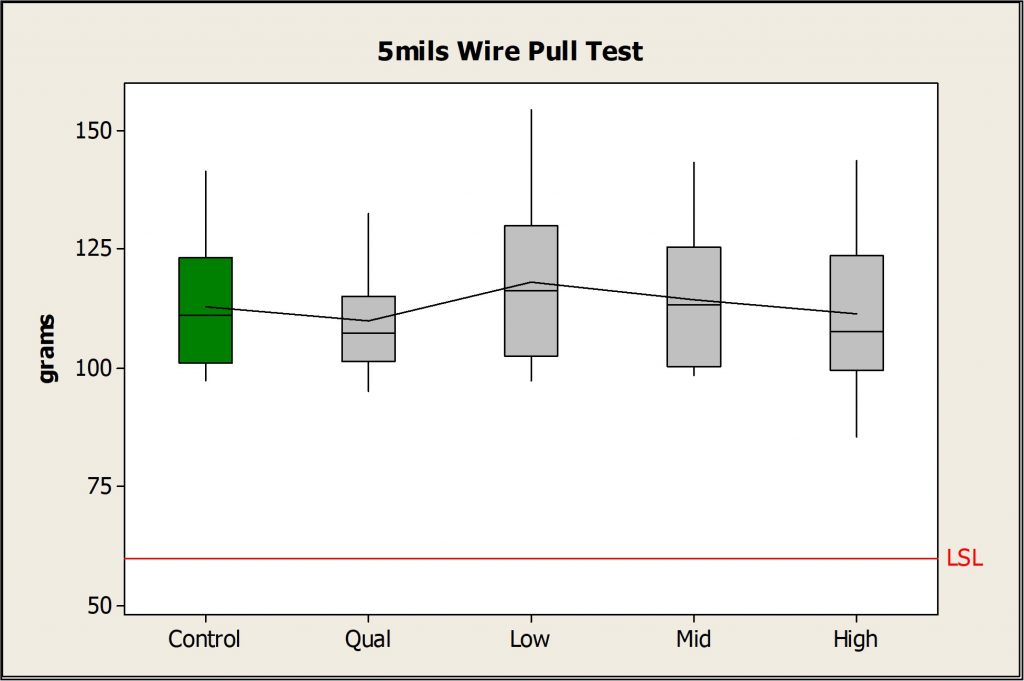

5 Mils Bondability Test – Loop Height & Wire Pull Test

Remarks: No Significant Difference on WPT at 5mils.

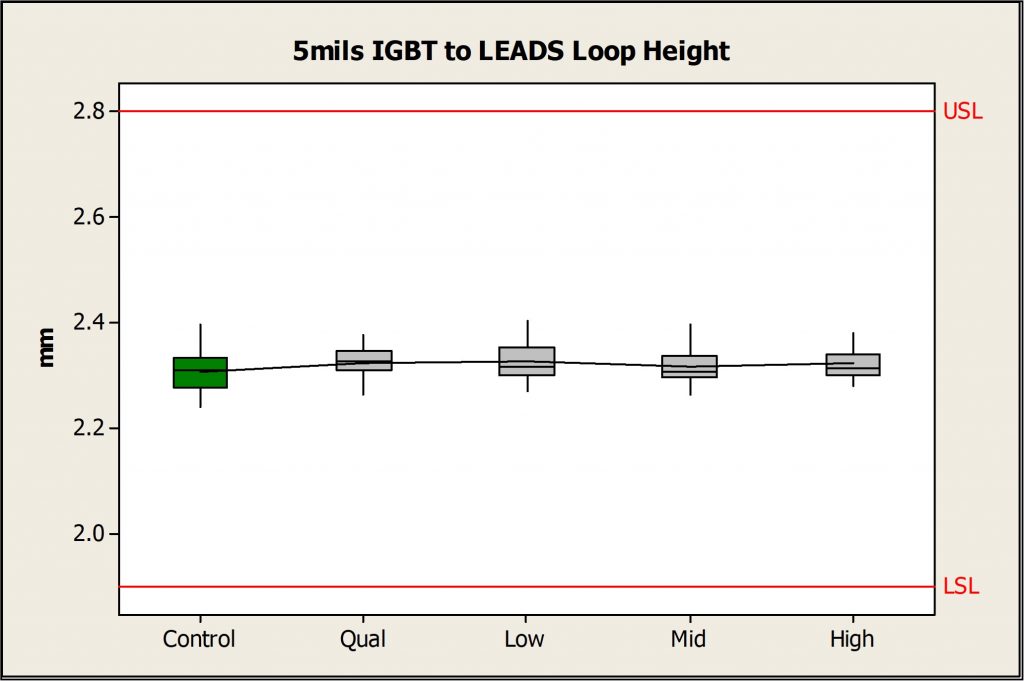

Remarks: no significant difference on 5mils Loop Height

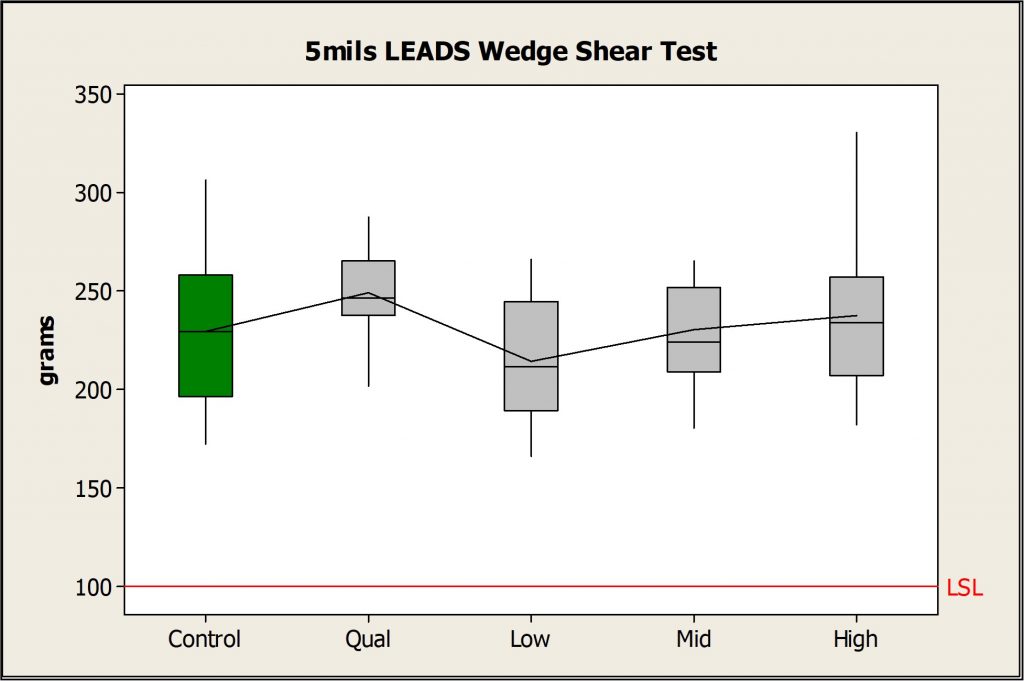

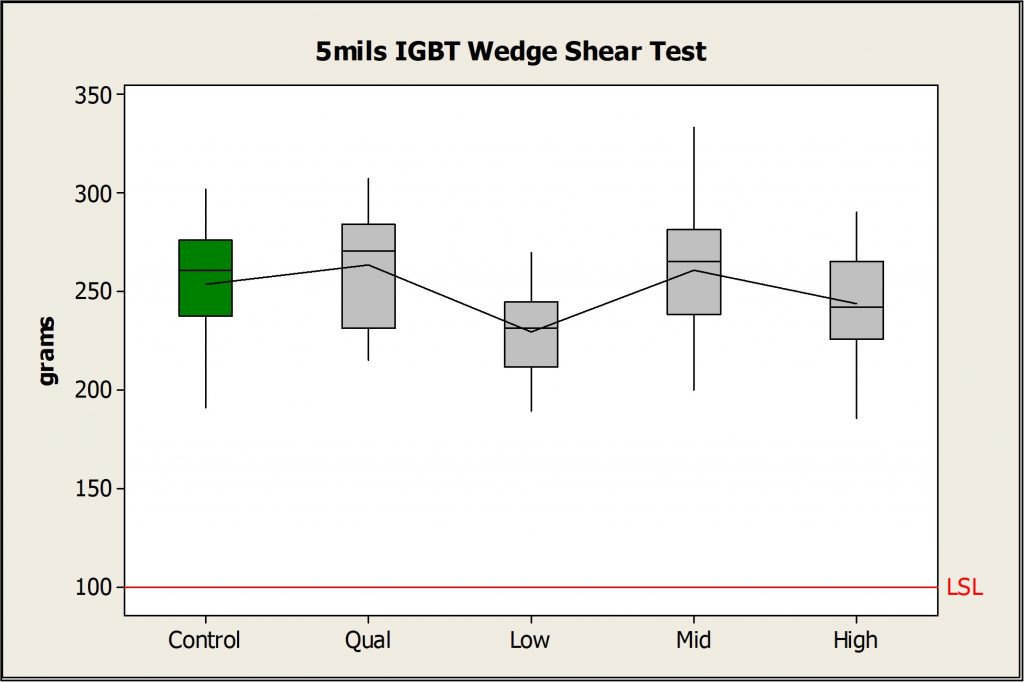

5 Mils Bondability Test – Wedge Shear Test

Remarks: No Significant Difference on WST at 5mils.

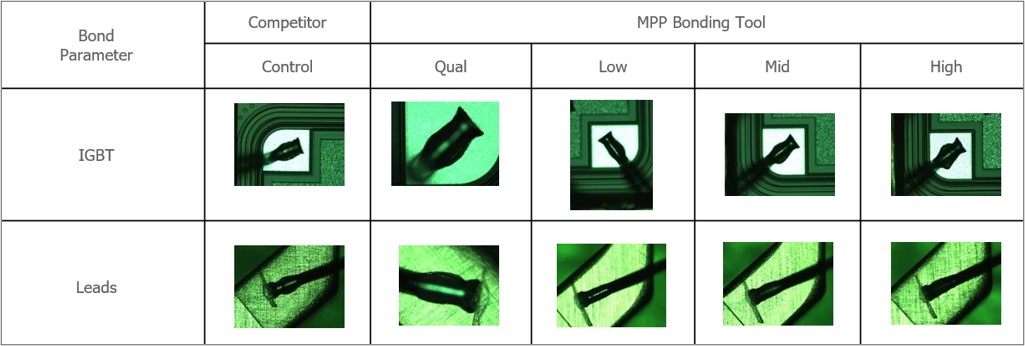

5 Mils Bondability Test – Visual

Remarks: No NSOP and misplaced bond on both 12mils and 5mils bond.

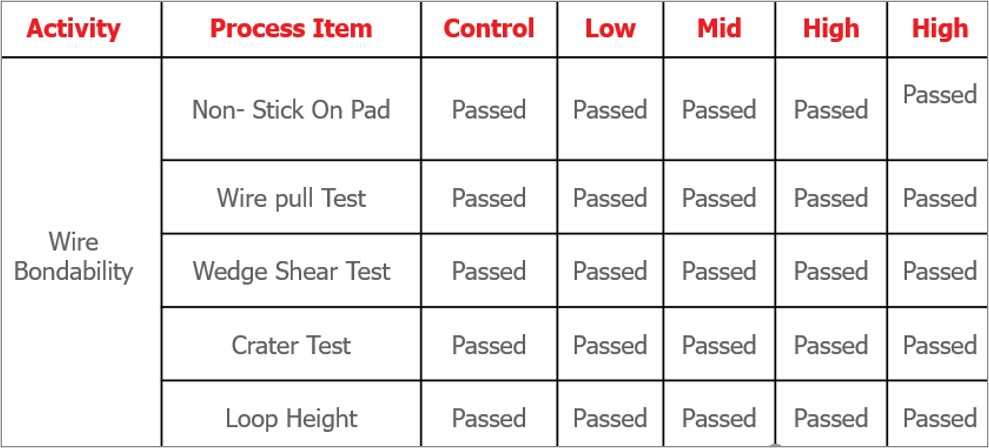

Summary

MPP bonding tool Passed all criteria using low, mid and high parameter settings.
